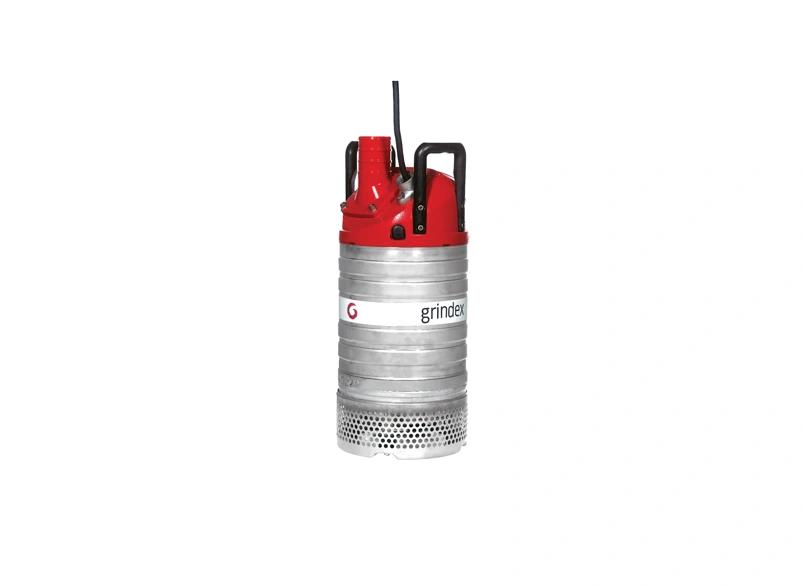

20kW - Electric Drainage Submersible

PDPD151

Key Features

  • Lifting eye
  • High pressure motor
  • Stainless wear plates
  • 3 blade impeller

CAN'T FIND WHAT YOU NEED?

  • Net Weight: 131kg
  • Dimensions (D x H) : 0.40 x 0.96 (metres)
  • Impeller type: Enclosed
  • Solids handling: 12mm
  • Max. flow: 338m3/hr
  • Max. head: 40m
  • Max. speed: 2905rpm
  • Flow @ BEP: 162m3/hr
  • Head @ BEP: 25m
  • Speed @ BEP: 2905rpm
  • Efficiency @ BEP: 66%
  • Power Supply: 63A 3PH 5-Pin
  • Rated Current : 32A @ 415V
  • Rated power @ BEP: 18kW
  • Max. power: 20kW
