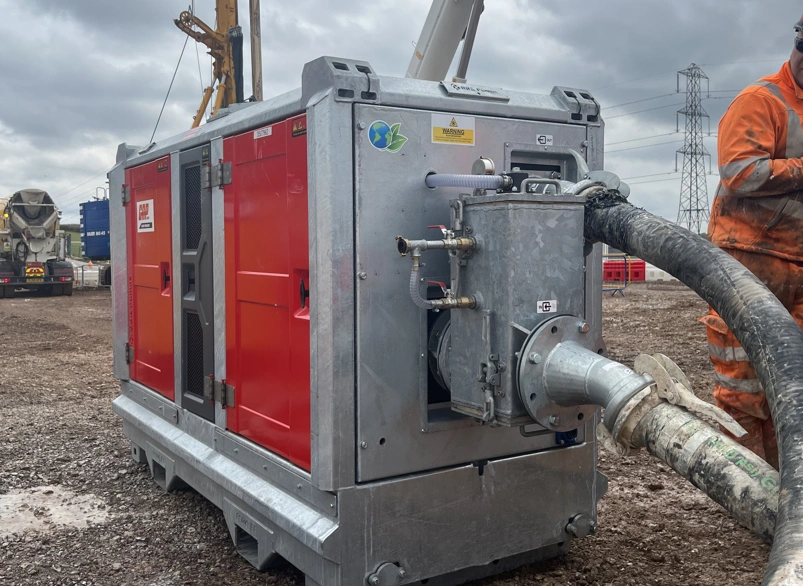

6” Bentonite Pump

PDPD074

Key Features

  • Stage V
  • Specially designed bentonite pump with easy-clean flushing ports to prevent blockage
  • Hard iron wear components
  • Spark arrestor and air intake shutdown valve fitted

GAP's 6" Bentonite Pump is designed for the efficient handling and transportation of bentonite slurry, that can be used in a variety of applications including drilling, construction and civil engineering.

CAN'T FIND WHAT YOU'RE LOOKING FOR?

Full Description

The Bentonite Pump is equipped with controls and monitoring system that allows operators to adjust the flow rate, pressure and other parameters required. This pump provides efficient control and transportation necessary for successful drilling, construction and environmental projects.

  • Impeller type: Semi-Open
  • Net Weight: 1750kg
  • Dimensions (L x W x H): 2.64 x 1.05 x 1.60 (metres)
  • Suction size: 150mm
  • Discharge size: 100mm
  • Solids handling: 80mm
  • Max. flow: 280m3/hr
  • Max. head: 34m
  • Max. speed: 1800rpm
  • Sound @ 10 metres: 62 BA
  • Fuel tank size: 300 litres
  • Fuel Burn/hr @ BEP: 7 litres/hr
  • Rated power @ BEP: 16kW
  • Engine model: Hatz 3H50TICD
  • Max. run time: 43 hours
  • Max. power: 42kW
  • Hard Hat Required
  • Ear Protection Required
  • Safety Boots Required
  • Safety Gloves Required
  • Hi-Vis Vest Required
  • Overalls Required
  • Safety Goggles Required
