6” Electric Sewage Pump - el

PDPW162

Key Features

  • Electric driven IE3 high efficiency motor
  • Integrated variable speed drive
  • Cutter impeller designed for heavy solids and sewage bypass applications
  • Power using 40KVA generator

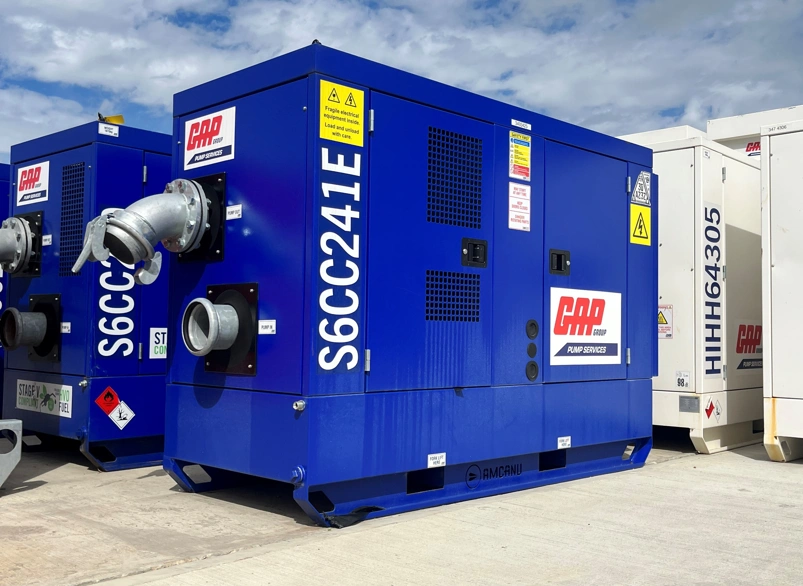

GAP's 6" Electric Sewage Pump is designed for the purpose of moving sewage, wastewater or effluent from one location to another.

CAN'T FIND WHAT YOU'RE LOOKING FOR?

Full Description

These pumps are commonly used in municipal sewage systems, industrial wastewater treatment plants, residential septic systems and other applications where the efficient and reliable transport of sewage or wastewater is necessary.

  • Impeller type: Cutter
  • Net Weight: 1570kg
  • Length: 2.89m
  • Width: 1.31m
  • Height: 1.76m
  • Suction size: 150mm
  • Discharge size: 150mm
  • Solids handling: 76mm
  • Max. flow: 275m3/hr
  • Max. head: 32m
  • Max. speed: 1600rpm
  • Power Supply: 63A 3PH 5-Pin
  • Rated Current : 41A
  • Rated power @ BEP: 18kW
  • Engine model: IE3 3PH 50Hz
  • Max. power: 22kW
  • Hard Hat Required
  • Ear Protection Required
  • Safety Boots Required
  • Safety Gloves Required
  • Hi-Vis Vest Required
  • Overalls Required
  • Safety Goggles Required
