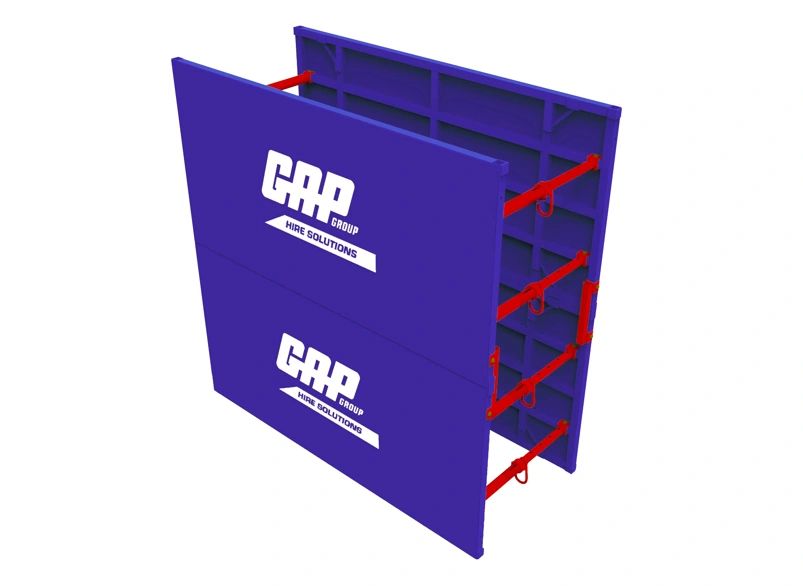

Aluminium Trench Shields

LT172

Key Features

  • Shields can be stacked three high
  • Can be inverted for small shafts

Aluminium Trench Shields are perfect for sewage, stormwater and all general excavation work.

CAN'T FIND WHAT YOU NEED?

Full Description

Aluminium Trench Shields are perfect for sewage, stormwater and all general excavation work. The two-sided mechanical support system is made from aluminium making them lightweight, long-lasting and easy to use. They are a great maintenance unit - will fit in a utility pickup or van. 4 x adjustable spreader bars (600mm to 900mm or 1000mm to 1800mm). Box weighs approximately 130kg.

  • Panel Height: 1200mm
  • Panel Length: 2400mm
  • Panel Weight: 55kg
  • Clearance between struts: 950mm/2150mm
  • Min. trench width: 708mm
  • Max. trench width: 1908mm
  • Max Trench Depth: 2400mm
  • Max Lateral Earth Pressure: 20kN/m2
  • Hard Hat Required
  • Ear Protection Required
  • Safety Boots Required
  • Safety Gloves Required
  • Dust Mask Required
  • Hi-Vis Vest Required
  • Heavy Load
  • Overalls Required
  • Safety Goggles Required
