Backhoe Trench Boxes

TB142

Key Features

  • Typical base weight from 805kgs
  • Internal widths from 600mm to 2400mm
  • Suitable for excavation depths up to 2.9m
  • 1.2m clearance under the bottom strut
  • Handrails & Ladder access available

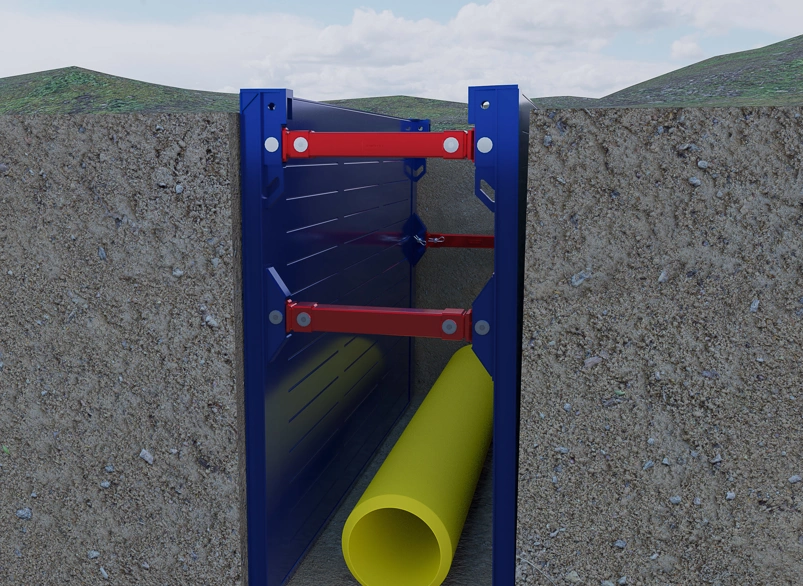

Backhoe Trench Boxes are designed for use with small excavators.

CAN'T FIND WHAT YOU NEED?

Full Description

The Backhoe Trench Box is perfect for small trenching applications. With a load capacity of 20 kN/m2, it can be used to depths of 2.9 metres in most soil types. It's ideal for use on building sites and construction projects where small excavator handling is required.

  • Trench width (internal): 603mm (min)/2403mm (max)
  • Clearance between struts: 2660mm
  • Base panel length: 2840mm
  • Base panel height: 2012mm
  • Extension panel height: 1024mm
  • Clearance under strut: 1200mm
  • Max Lateral Earth Pressure: 20kN/M2
  • Weight of base box: 805kg
  • Weight of extension box: 415kg
  • Thickness of Panel: 60mm
  • Max Trench Depth: 2900mm
  • Hard Hat Required
  • Ear Protection Required
  • Safety Boots Required
  • Safety Gloves Required
  • Dust Mask Required
  • Heavy Load
  • Hi-Vis Vest Required
  • Overalls Required
  • Safety Goggles Required
