High Clearance LITE Aluminium Trench Shield

TWLB030/TWLB031/TWLB032/TWLB033

Key Features

  • Internal clearance: 800mm - 1,000mm
  • Lower strut clearance: 750mm
  • Telescopic strutsĀ

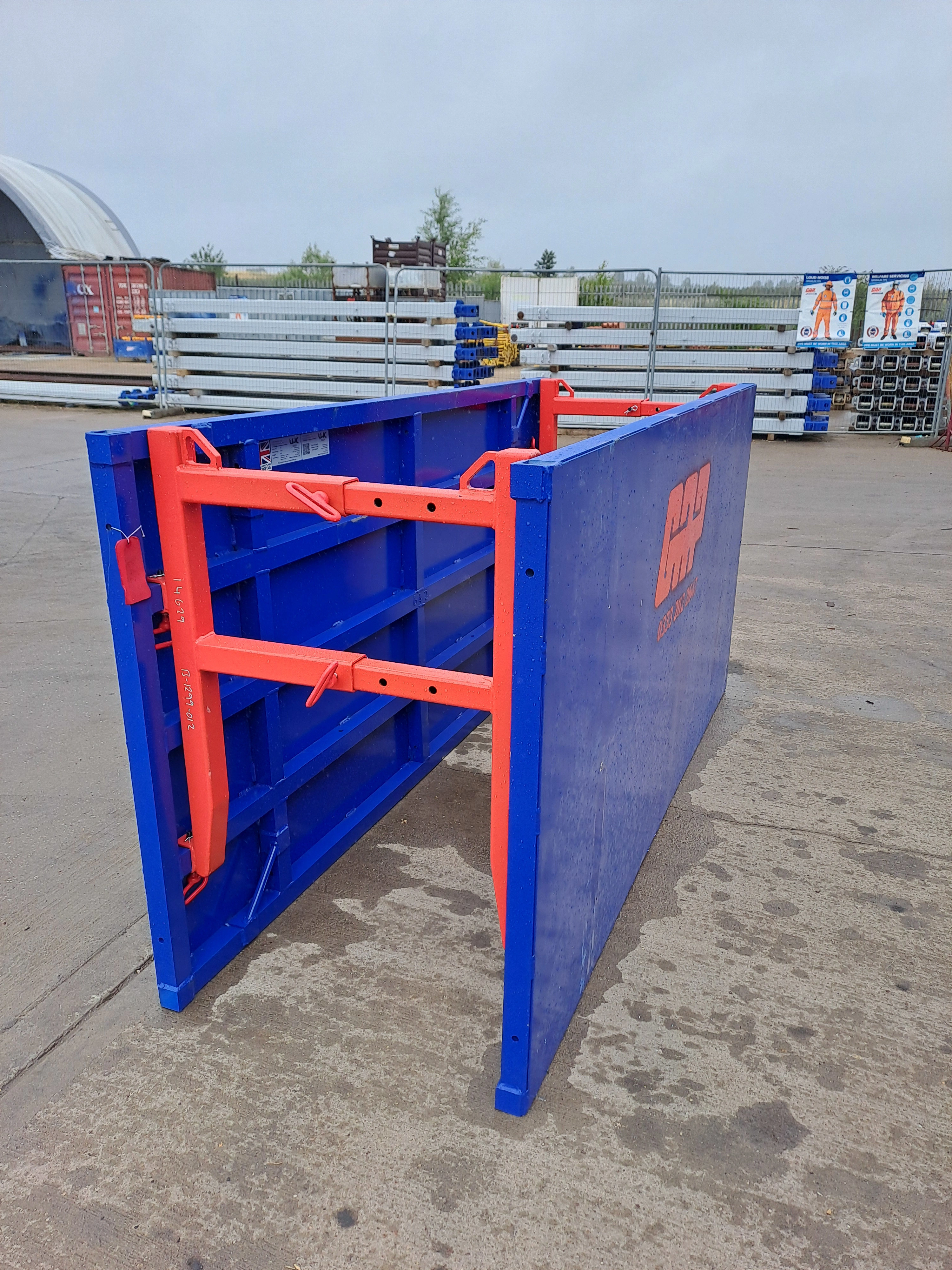

The High Clearance LITE Aluminium Trench Shield is a lightweight, high-performance trench shoring solution designed for safe and efficient pipe installation. With a 750mm lower strut clearance, it easily accommodates pipes up to 650mm in diameter, making it ideal for utility and civil works.

CAN'T FIND WHAT YOU'RE LOOKING FOR?

Full Description

The system offers adjustable internal clearance from 800mm to 1,000mm, thanks to telescopic struts with simple pin connections for fast, tool-free setup on site. Supplied as a complete kit, it includes an 2,400mm x 1,200mm aluminium shield panel, shield pins with handles, and adjustable high-clearance inner (410mm) and outer (340mm) struts. Engineered for maximum clearance in shallow trenching, this aluminium trench shield delivers strength, flexibility, and speed where it's needed most.
