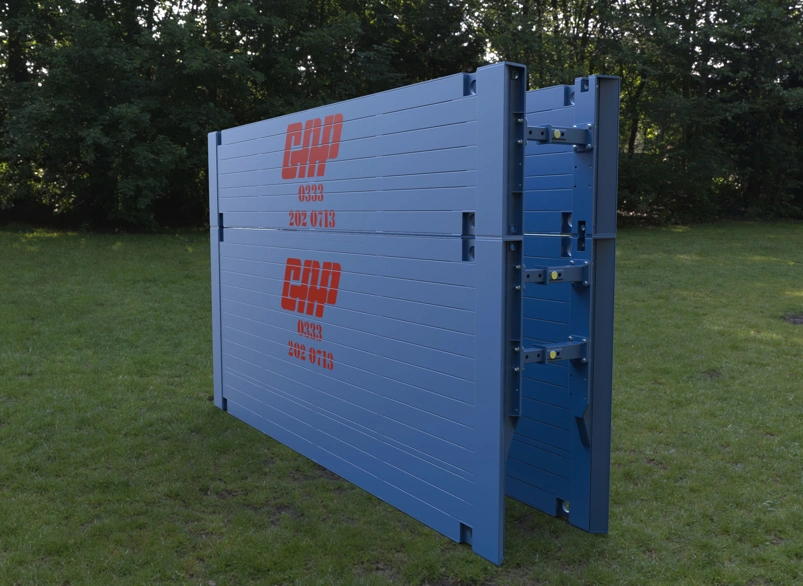

Mini Drag Box

TB152

Our drag boxes provide a safe and quick means of pipe laying. Excavators are used to drag the box forward by pulling on the front strut.

CAN'T FIND WHAT YOU NEED?

Full Description

Our drag boxes provide a safe and quick means of pipe laying. Excavators are used to drag the box forward by pulling on the front strut. Pinned struts allow for easy adjustment.

  • Trench width (internal): 560mm (min)/3000mm (max)
  • Clearance between struts: 2600mm
  • Base panel length: 3034mm
  • Base panel height: 2005mm
  • Extension panel height: 1030mm
  • Clearance under strut: 1200mm
  • Thickness of Panel: 60mm
  • Max Lateral Earth Pressure: 25kN/M2
  • Max Trench Depth: 3900mm
  • Base Panel Weight : 604kg
  • Extension Panel Weight : 365kg
  • Hard Hat Required
  • Ear Protection Required
  • Safety Boots Required
  • Safety Gloves Required
  • Dust Mask Required
  • Heavy Load
  • Hi-Vis Vest Required
  • Overalls Required
  • Safety Goggles Required
