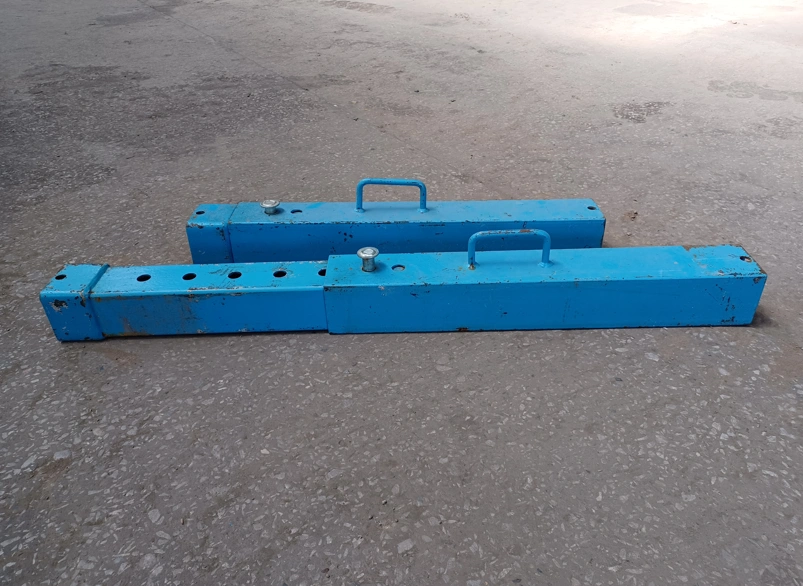

Waler End Bearer - Type B - 780mm - 1310mmWS015
Steel end bearers are used to provide support at the end on the Waler rails when it is not possible to safely batter the ends of the trench to ground level.
CAN'T FIND WHAT YOU'RE LOOKING FOR?
Steel end bearers are used to provide support at the end on the Waler rails when it is not possible to safely batter the ends of the trench to ground level. They are manufactured in several sizes to match the section of Rams. The End Bearers are supplied with securing Pin and ‘R’ clip. They are made from two parts, the outer sleeve (100x100x4 SHS – S355) and the inner sleeve (90x90x5 SHS – S355). All End Bearers for Ram Types B and C have carrying handles. These must not be used for lifting the assembled frame; they are solely to be used for carryi8ng the End Bearer. The securing pin is to ensure safe handling of the End Barer when being transported and MUST be removed when assembled with the waler rails, otherwise when pumping out the rams, the pins can become under load and prevent the rams achieving the desired loading on the trench sheets.
