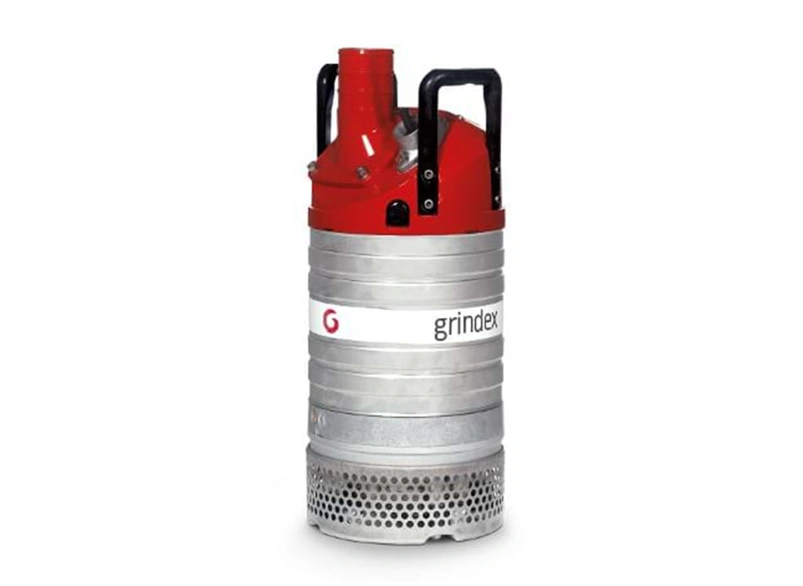

30kW - Electric Drainage Submersible

PDPD265

Key Features

  • Lifting eye
  • High pressure motor
  • Dry running
  • Stainless wear plates
  • Biodegradeable oil
  • 3 blade impeller

CAN'T FIND WHAT YOU'RE LOOKING FOR?

  • Net Weight: 285kg
  • Dimensions (D x H) : 0.51 x 1.31 (metres)
  • Impeller type: Enclosed
  • Solids handling: 15mm
  • Max. flow: 790m3/hr
  • Max. head: 28m
  • Max. speed: 1465rpm
  • Flow @ BEP: 485m3/hr
  • Head @ BEP: 15m
  • Speed @ BEP: 1645rpm
  • Efficiency @ BEP: 69%
  • Power Supply: 63A 3PH 5-Pin
  • Rated Current : 54A @ 415V
  • Rated power @ BEP: 29kW
  • Max. power: 30kW
  • Hard Hat Required
  • Ear Protection Required
  • Safety Boots Required
  • Safety Gloves Required
  • Hi-Vis Vest Required
  • Overalls Required
  • Safety Goggles Required
