Light Trench Boxes

TB114

Key Features

  • Working width from 600mm – 3200mm
  • Handrails & Ladder access available
  • Approx box weight 1200kg

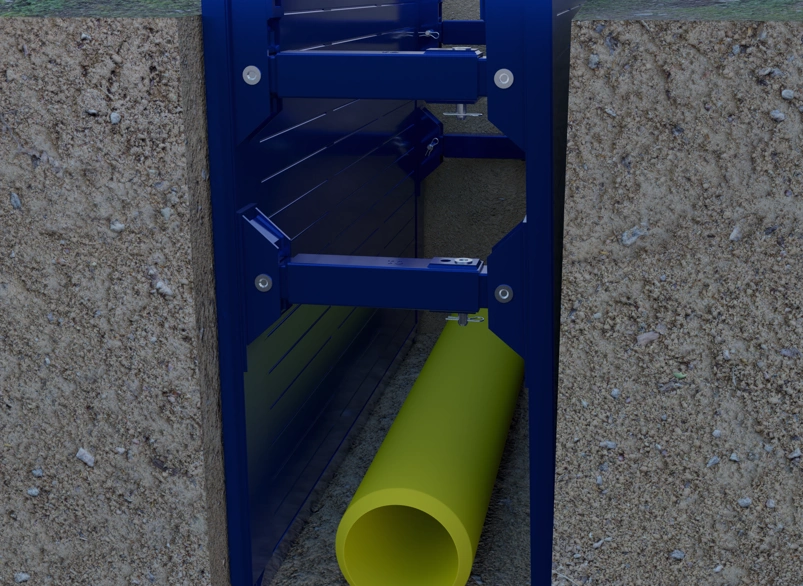

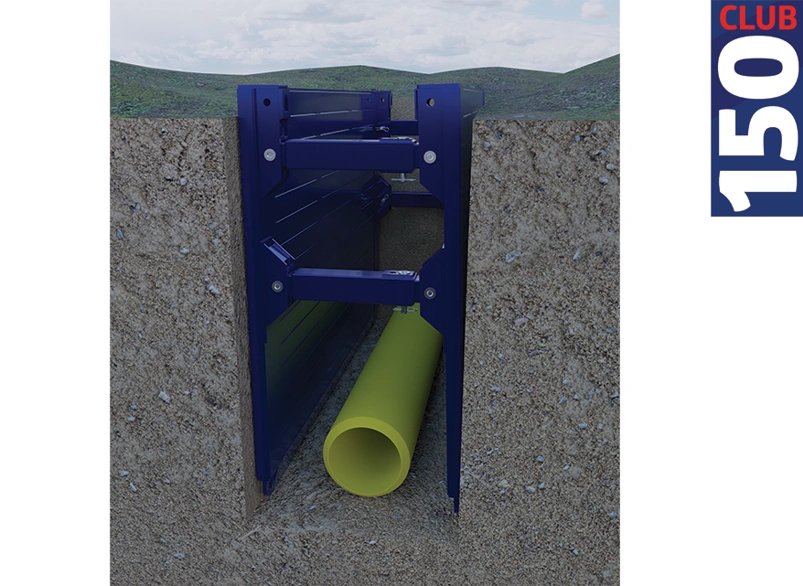

Light trench boxes provide ground support for excavations and protect workers.

CAN'T FIND WHAT YOU NEED?

Full Description

GAP offer a wide range of trench box for cover most trench support applications providing a safe solution on site. Our boxes are versatile, cost-effective and provide an excellent way of protecting workers from excavation collapsing. The lightweight shoring equipment is ideal for the installation of sewers and utility work.



The Lightweight Box can be used in trenches up to 4.0m deep in conjunction with up to two top extension boxes, subject to the maximum panel pressure not being exceeded.

  • Trench width (internal): 602mm (min)/3190mm (max)
  • Clearance between struts: 2696mm
  • Base panel length: 3020mm
  • Base panel height: 2015mm
  • Extension panel height: 1025mm
  • Clearance under strut: 1100mm
  • Thickness of Panel: 80mm
  • Max Lateral Earth Pressure: 28kN/M2
  • Max Trench Depth: 4000mm
  • Weight of base box: 1270kg
  • Weight of extension box: 720kg
  • Base Panel Weight : 567kg
  • Extension Panel Weight : 320kg
  • Hard Hat Required
  • Ear Protection Required
  • Safety Boots Required
  • Safety Gloves Required
  • Dust Mask Required
  • Heavy Load
  • Hi-Vis Vest Required
  • Overalls Required
  • Safety Goggles Required
