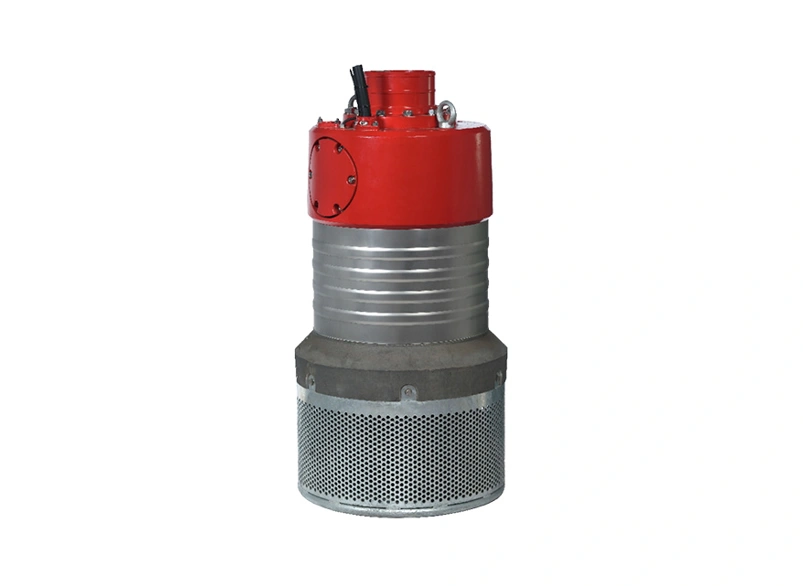

57kW - Electric Drainage Submersible

PDPD103

Key Features

  • Lifting eye
  • High pressure motor
  • Dry running
  • Stainless wear plates
  • Biodegradable oil
  • 3 blade impeller

CAN'T FIND WHAT YOU'RE LOOKING FOR?

  • Net Weight: 540kg
  • Dimensions (D x H) : 0.75 x 1.48 (metres)
  • Impeller type: Enclosed
  • Solids handling: 12mm
  • Max. flow: 1242m3/hr
  • Max. head: 26m
  • Max. speed: 1475rpm
  • Flow @ BEP: 595m3/hr
  • Head @ BEP: 16m
  • Speed @ BEP: 1475rpm
  • Efficiency @ BEP: 53%
  • Power Supply: 125A 3PH 5-Pin
  • Rated Current : 107A @ 415V
  • Rated power @ BEP: 57kW
  • Max. power: 57kW
  • Hard Hat Required
  • Ear Protection Required
  • Safety Boots Required
  • Safety Gloves Required
  • Hi-Vis Vest Required
  • Overalls Required
  • Safety Goggles Required
